Binders

Binders and Binding Machines

We specialize in binding attachments for industrial sewing applications. Regardless of the job, we can help with your binder needs. The right binder for hats, upholstery, mattress, garments and much more can increase your production and quality.

Binding machines are either flatbed or cylinder machines, straight stitch lockstitch, zig-zag lockstitch or chainstitch, depending on your application. You can also purchase binders to fit your existing machines, in a wide variety of variations.

Cylinder arm machine with binder
Close up of a cylinder arm machine with binder

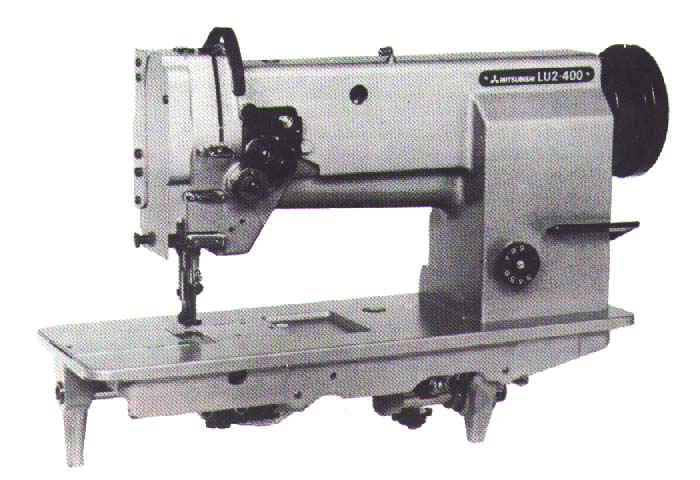

Mitusbishi LU2-400
Mitsubishi flatbed straight stitch lockstitch machine

Yamato chainstitch with binder
Yamato flatbed chainstitch machine with binder

Yamato chainstitch arm machine
Yamato chainstitch arm machine

Global ZZ 567

Global flatbed lockstitch zig-zag machine.



Synchronized Feed Binders

Synchronized Binder Feed Machines are equipped with a special mechanism that oscillates the binder with the movement of the feed dog and the walking (front) presser foot.

The binder is mounted very closely to the front presser foot and the needle, and it’s movement is “synchronized” perfectly throughout the sewing cycle.

Since the needle is so close to the binder, the binding is sew down immediately after it leaves the mouth of the binder.

This allows the machine to easily sew around a very small radius and prevents the binding from “dropping off” the work, which is a frequent problem in binding operations where a standard ( non synchronized ) binder is used.

DSC00264

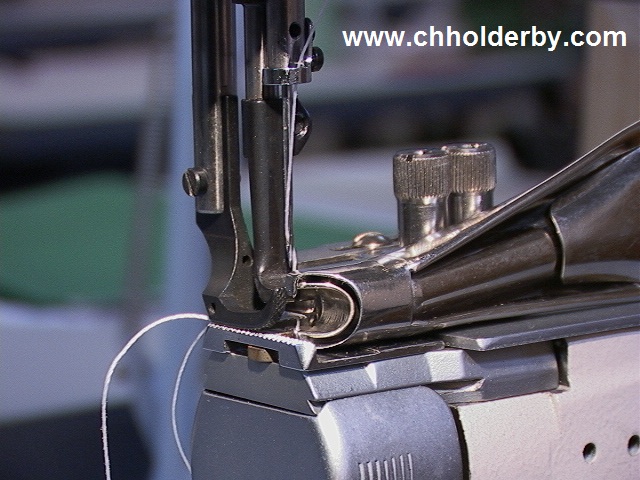

DSC00259



Binders can be very specialized, but there are 3 basic types; right angle, in line and C type.

Right Angle Binder Set
Right Angle Binder Set

In Line Binder Set
In Line Binder Set

C Type Binder Set
C Type Binder Set

Binders are available in a wide variety of folds and finishes. Common folds and finishes include clean finish, single raw edge finish, and raw edge finish.

Clean Finish
Clean Finish

Single Raw Edge Finish
Single Raw Edge Finish

Raw Edge Finish
Raw Edge Finish

Contact us for all your binder needs. Shown here is just a small sampling of the possibilities.
